OMFB HPM - ISO - Axial piston motor with cylindrical shaft
Print brochure
| Koodi |
Laipan ulko Ø (mm) |
Kierr. tilav. (cm3) |
Suurin käyttöpaine (bar) |
Max. r/min jatkuva / hetkell. |
Akseli |
OMFB koodi |
Liitäntä |
Pakkauskoko (kpl) |

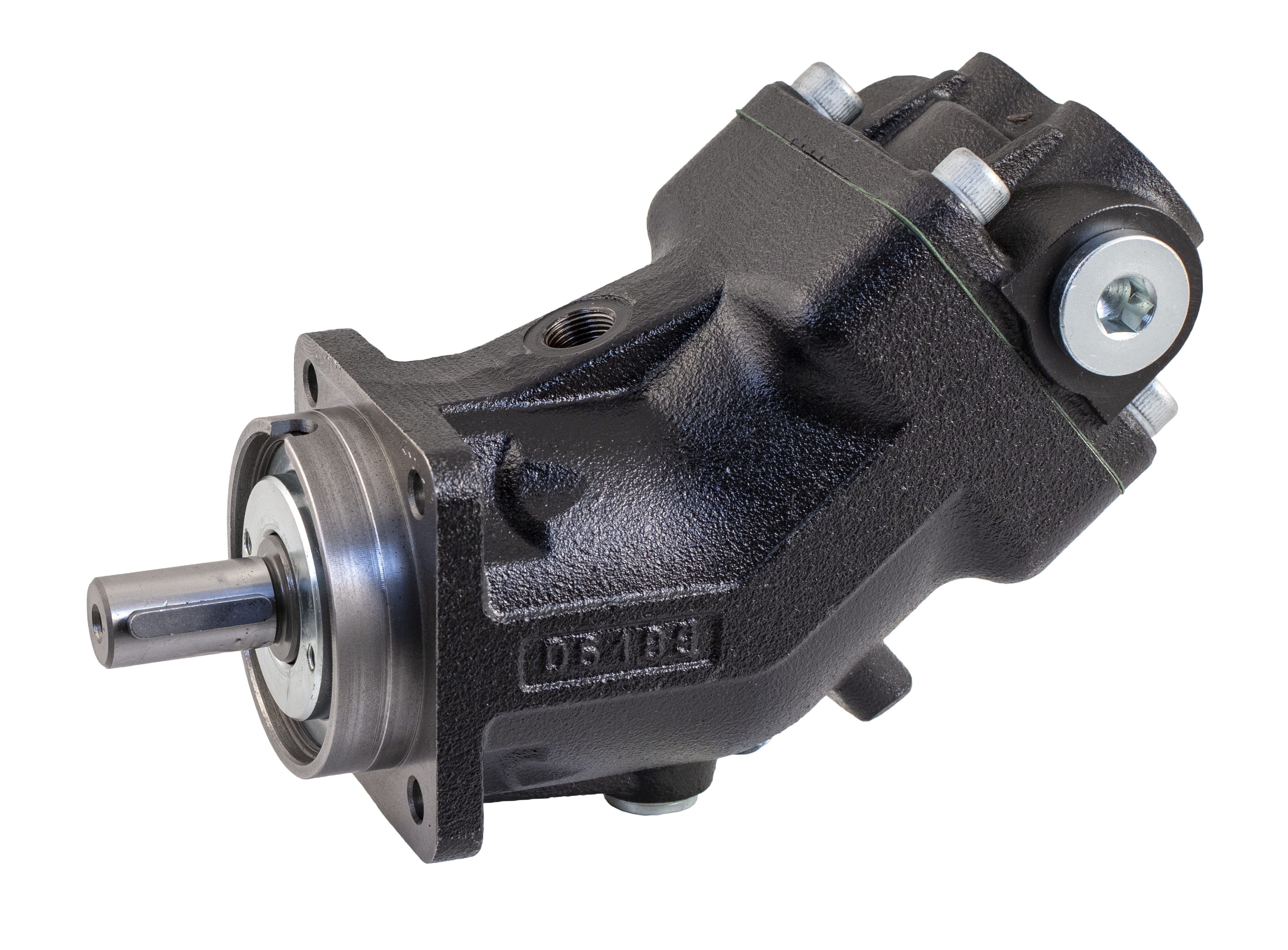

| HPM012-3019-D20-BSPP |
80mm |
12 |
350/400 |
6300/6800 |
20mm |
24004104012 |
G3/4" |
1 |
| HPM012-3019-D25-BSP |
80mm |
12 |
350/400 |
6300/6800 |
25mm |
24004404012 |
G3/4" |
1 |
| HPM017-3019-K25-BSP |
80mm |
17 |
350/400 |
6300/6800 |
25mm |
24004404017 |
G3/4" |
1 |
| HPM025-3019-K25-BSPP |
100mm |
25 |
350/400 |
6300/6800 |
25mm |
24204401025 |
G3/4" |
1 |
| HPM025-3019-K25-S90 |
100mm |
25 |
350/400 |
6300/6800 |
25mm |
24204413025 |
90 SAE 6000psi 1/2" |
1 |
| HPM025-3019-K30-S90 |
100mm |
25 |
350/400 |
6300/6800 |
30mm |
24204713025 |
90 SAE 6000psi 1/2" |
1 |

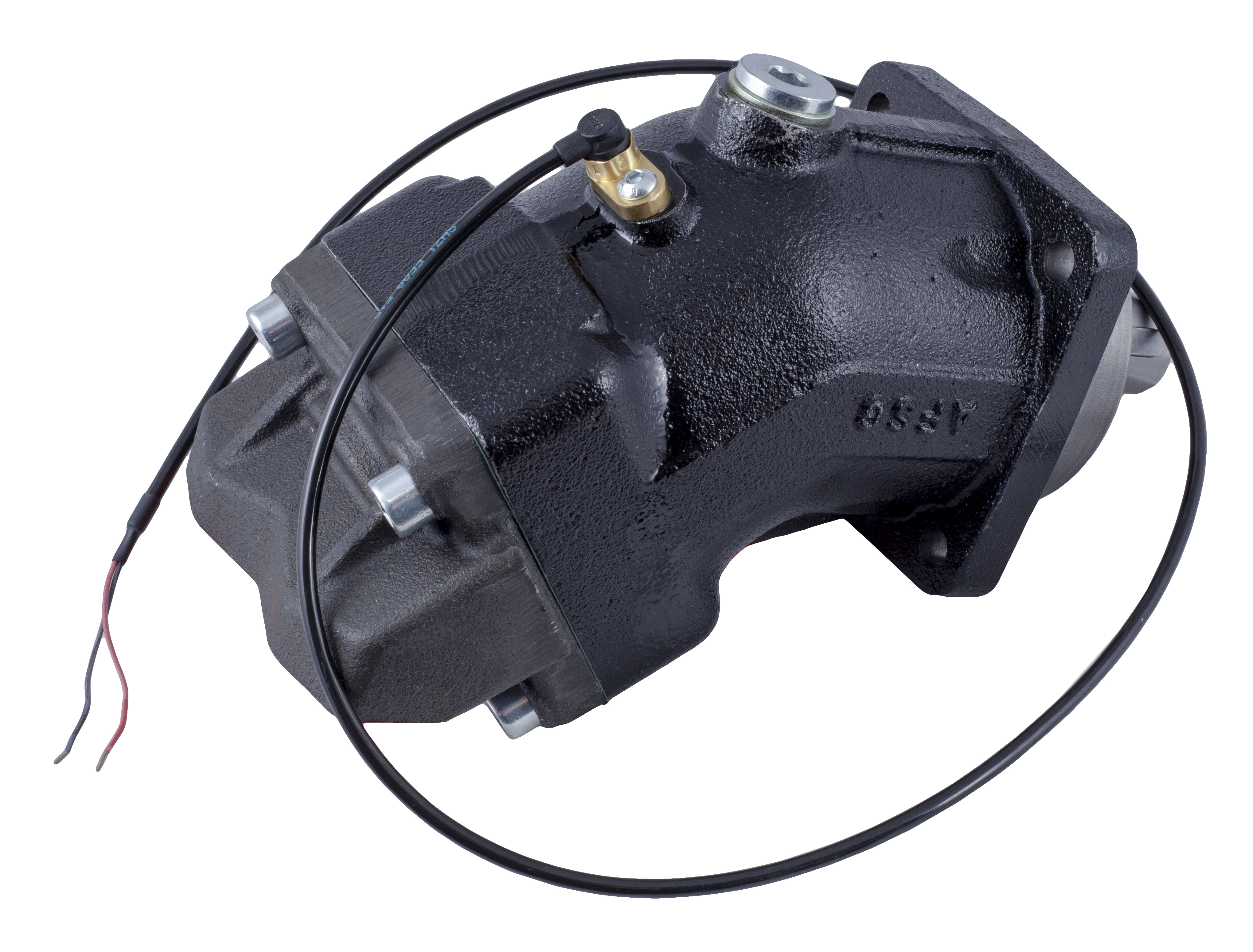

| HPM025-3019-K30-S90M |
100mm |
25 |
350/400 |
6300/6800 |
30mm |
24204713025 |
90 SAE 6000psi 1/2" |
1 |
| HPM034-3019-K30-BSPP |
100mm |
34 |
350/400 |
6300/6800 |
30mm |
24204701034 |
G3/4" |
1 |
| HPM034-3019-K30-S90 |
100mm |
34 |
350/400 |
6300/6800 |
30mm |
24204713034 |
90 SAE 6000psi 1/2" |
1 |
| HPM040-3019-K30-BSPP |
125mm |
40 |
350/400 |
5000/5500 |
30mm |
24404701040 |
G1" |
1 |
| HPM040-3019-K30-S90 |
125mm |
40 |
350/400 |
5000/5500 |
30mm |
24404713040 |
90 SAE 6000psi 3/4" |
1 |
| HPM047-3019-K35-S90 |
125mm |
47 |
350/400 |
5000/5500 |
35mm |
24405013047 |
90 SAE 6000psi 3/4" |
1 |
| HPM055-3019-K30-S40 |
125mm |
55 |
350/400 |
5000/5500 |
30mm |
24404711055 |
40 SAE 6000psi 3/4" |
1 |
| HPM055-3019-K35-S40 |
125mm |
55 |
350/400 |
5000/5500 |
35mm |
24405011055 |
40 SAE 6000psi 3/4" |
1 |
| HPM064-3019-K35-BSP |
125mm |
64 |
350/400 |
5000/5500 |
35mm |
24405001064 |
G1" |
1 |
| HPM064-3019-K35-S90 |
125mm |
64 |
350/400 |
5000/5500 |
35mm |
24405013064 |
90 SAE 6000psi 3/4" |
1 |
| HPM064-3019-K30-S90 |
125mm |
64 |
350/400 |
5000/5500 |
30mm |
24404713064 |
90 SAE 6000psi 3/4" |
1 |
| HPM064-3019-K35-S40 |
125mm |
64 |
350/400 |
5000/5500 |
35mm |
24405011064 |
40 SAE 6000psi 3/4" |
1 |
| HPM080-3019-K40-S40 |
140mm |
80 |
350/400 |
4000/4500 |
40mm |
24405011064 |
40 SAE 6000psi 1" |
1 |
| HPM080-3019-K40-S90 |
140mm |
80 |
350/400 |
4000/4500 |
40mm |
24605313080 |
90 SAE 6000psi 1" |
1 |

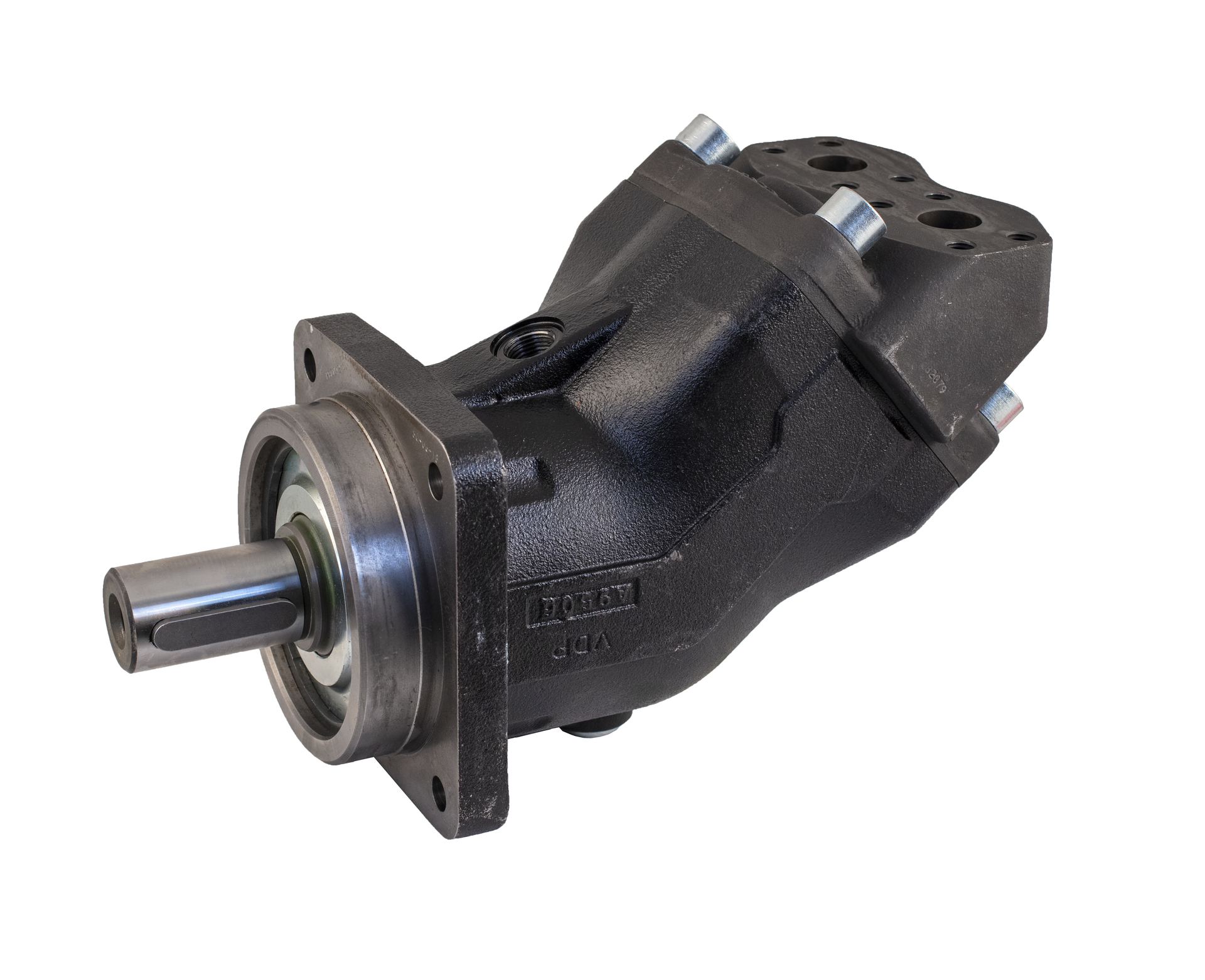

| HPM091-3019-K40-S90 |
140mm |
91 |
350/400 |
4000/4500 |
40mm |
24605313091 |
90 SAE 6000psi 1" |
1 |
| HPM109-3019-K40-S90 |
160mm |
109 |
350/400 |
4000/4500 |
40mm |
24805313108 |
90 SAE 6000psi 1 1/4" |
1 |
| HPM109-3019-K45-S90 |
160mm |
109 |
350/400 |
4000/4500 |
45mm |
24805613108 |
90 SAE 6000psi 1 1/4" |
1 |
| HPM130-3019-K45-S90 |
160mm |
130 |
350/400 |
4000/4500 |
45mm |
24805613130 |
90 SAE 6000psi 1 1/4" |
1 |
